Household Budgets

This is a Graphical Budget Calculator that allows you to view your household finances at different times during each year. You can view a (readonly) year summary, 4 quarters, the 3 months which make up 1 quarter, 12 monthly graphs, or the editable individual months.

Each of the different views uses the same properties, which are editable only in the editable individual months views. This readonly/writable effect is achieved by wrapping the properties classes in a readonly wrapper class, or for writable properties, simply using the unwrapped classes.

The values contained in the relevant properties are displayed as an interactive histogram, besides the propertygrid editor/viewer. Moving your mouse over the bars in the graph brings up values in the statusbar at the bottom of the form.

The eight main properties used in this application are expandable properties, opening up to reveal child properties or further expandable properties, which in some cases, depending on the current view, allow editing the values, in other cases the properties remain readonly.

The Total Income property and each of the Outgoing expandable properties has a coloured rectangle drawn in the propertygrid, which corresponds to the colours of the coloured bars in the histogram.

The expandable properties in the PropertyGrid are achieved through TypeConverter (ExpandableObjectConverter) attributes on the properties classes. The coloured rectangles in the PropertyGrid are achieved through UITypeEditor classes. This functionality isn't offered out of the box in the PropertyGrid. Using Class and Property level Attributes make this possible.

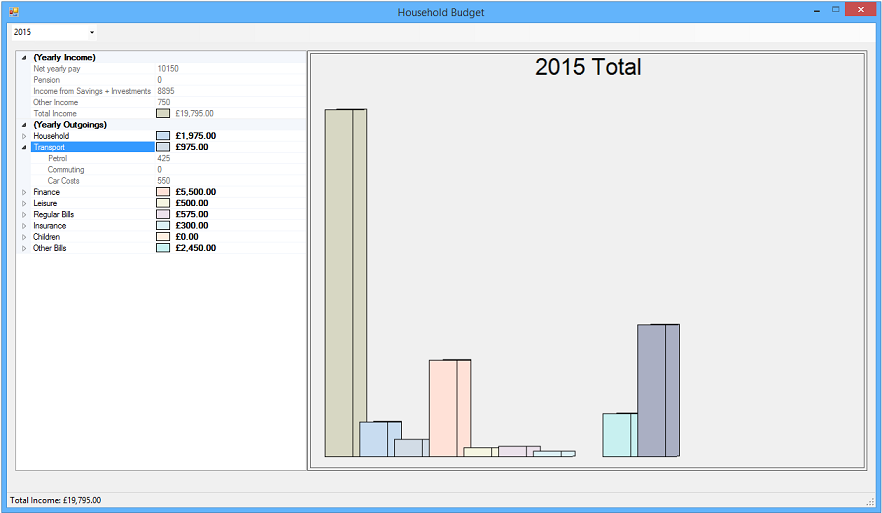

Yearly Summary (readonly)

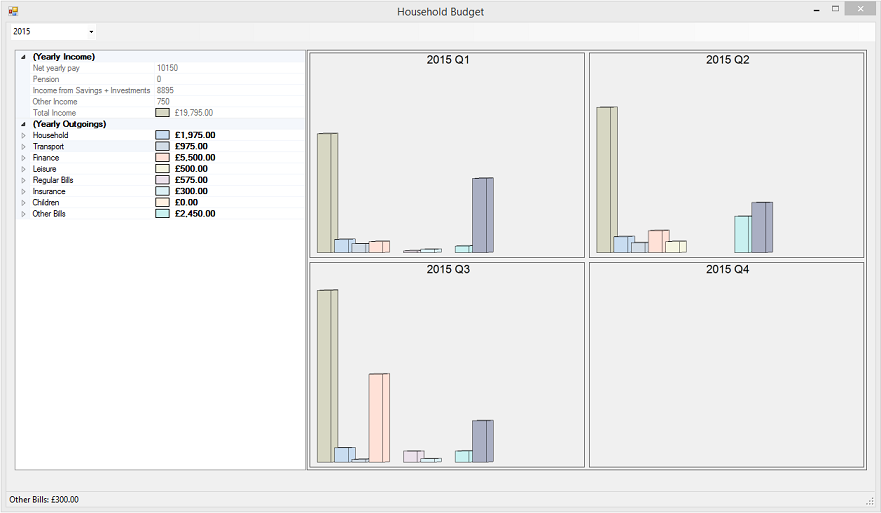

4 Quarters (readonly)

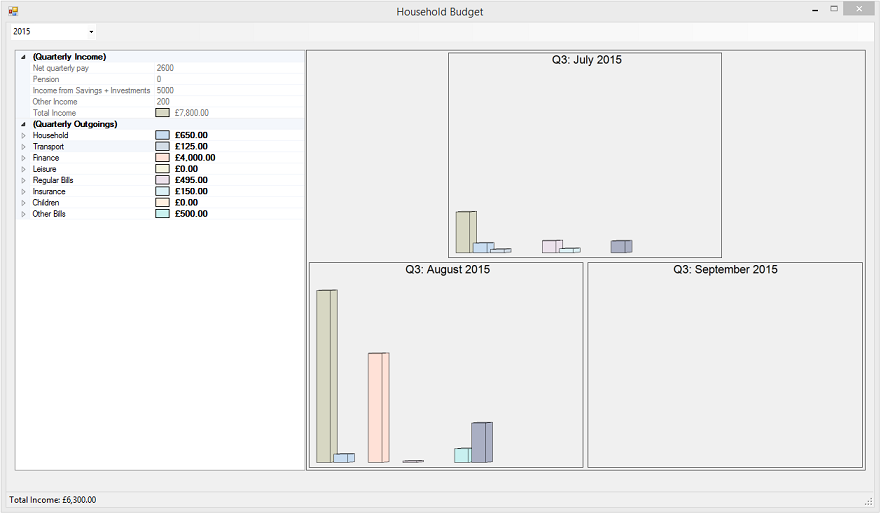

One Quarter (readonly)

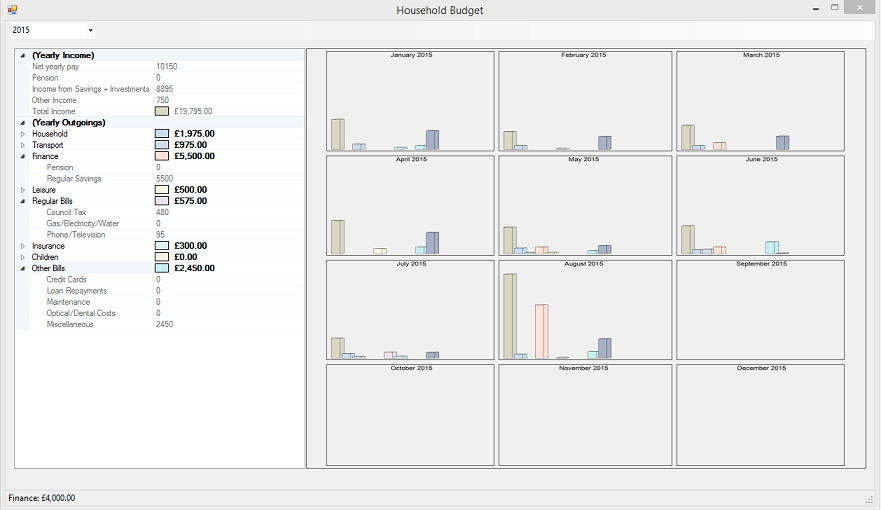

12 Months (readonly)

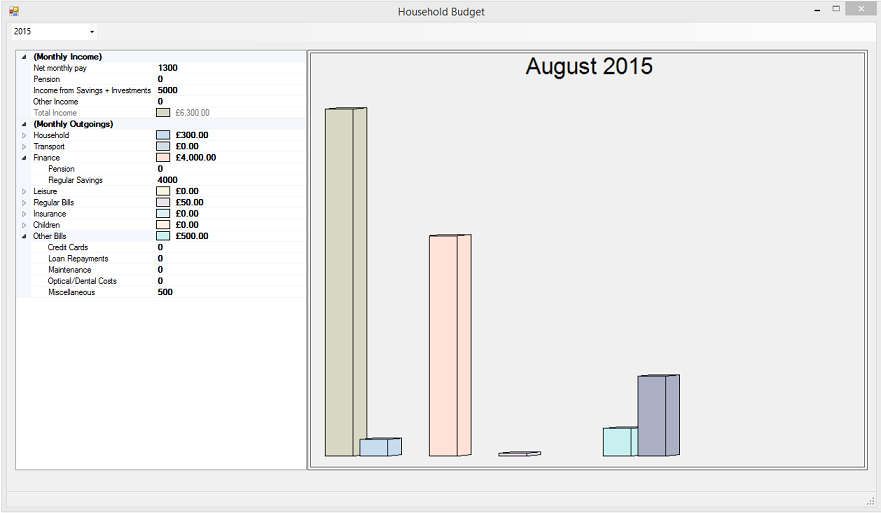

One Month (editable)

❮ ❯

TypeEditor - example

Imports System.Drawing.Design

Public Class TypeEditor0
    Inherits UITypeEditor

    Public Overrides Function GetPaintValueSupported(ByVal context As System.ComponentModel.ITypeDescriptorContext) As Boolean
        Return True
    End Function

    Public Overrides Sub PaintValue(ByVal e As System.Drawing.Design.PaintValueEventArgs)
        Dim img As New Bitmap(19, 12)
        Dim gr As Graphics = Graphics.FromImage(img)
        gr.Clear(Color.FromArgb(215, 215, 195))
        e.Graphics.DrawImage(img, New Point(2, 2))
        MyBase.PaintValue(e)
    End Sub

End Class

The main Properties Class

This class contains some regular, and some expanding properties

Imports System.ComponentModel
Imports System.Globalization
Imports System.Drawing.Design

<System.Serializable()> Public Class properties

    Private _net As Decimal
    <CategoryAttribute("(Monthly Income)"),
    RefreshProperties(RefreshProperties.All),
    DisplayName("Net monthly pay")>
    Public Property net() As Decimal
        Get
            Return _net
        End Get
        Set(ByVal value As Decimal)
            _net = value
            totalIncome = (net + pension + otherIncome1 + otherIncome2).ToString("c2")
        End Set
    End Property

    Private _pension As Decimal
    <CategoryAttribute("(Monthly Income)"),
    RefreshProperties(RefreshProperties.All),
    DisplayName("Pension")>
    Public Property pension() As Decimal
        Get
            Return _pension
        End Get
        Set(ByVal value As Decimal)
            _pension = value
            totalIncome = (net + pension + otherIncome1 + otherIncome2).ToString("c2")
        End Set
    End Property

    Private _otherIncome1 As Decimal
    <CategoryAttribute("(Monthly Income)"),
    RefreshProperties(RefreshProperties.All),
    DisplayName("Income from Savings + Investments")>
    Public Property otherIncome1() As Decimal
        Get
            Return _otherIncome1
        End Get
        Set(ByVal value As Decimal)
            _otherIncome1 = value
            totalIncome = (net + pension + otherIncome1 + otherIncome2).ToString("c2")
        End Set
    End Property

    Private _otherIncome2 As Decimal
    <CategoryAttribute("(Monthly Income)"),
    RefreshProperties(RefreshProperties.All),
    DisplayName("Other Income")>
    Public Property otherIncome2() As Decimal
        Get
            Return _otherIncome2
        End Get
        Set(ByVal value As Decimal)
            _otherIncome2 = value
            totalIncome = (net + pension + otherIncome1 + otherIncome2).ToString("c2")
        End Set
    End Property

    Private _totalIncome As String
    <CategoryAttribute("(Monthly Income)"),
    RefreshProperties(RefreshProperties.All),
    ReadOnlyAttribute(True),
    DisplayName("Total Income"),
    Editor(GetType(TypeEditor0), GetType(UITypeEditor))>
    Public Property totalIncome() As String
        Get
            Return _totalIncome
        End Get
        Set(ByVal value As String)
            _totalIncome = value
        End Set
    End Property

    Private _houseHold As New Household
    <CategoryAttribute("(Monthly Outgoings)"),
    DisplayName("Household"),
    Editor(GetType(TypeEditor3), GetType(UITypeEditor)),
    DesignerSerializationVisibility(DesignerSerializationVisibility.Content)>
    Public Property houseHold() As Household
        Get
            Return _houseHold
        End Get
        Set(ByVal value As Household)
            _houseHold = value
        End Set
    End Property

    Private _transport As New Transport
    <CategoryAttribute("(Monthly Outgoings)"),
    DisplayName("Transport"),
    Editor(GetType(TypeEditor8), GetType(UITypeEditor)),
    DesignerSerializationVisibility(DesignerSerializationVisibility.Content)>
    Public Property transport() As Transport
        Get
            Return _transport
        End Get
        Set(ByVal value As Transport)
            _transport = value
        End Set
    End Property

    Private _finance As New Finance
    <CategoryAttribute("(Monthly Outgoings)"),
    DisplayName("Finance"),
    Editor(GetType(TypeEditor2), GetType(UITypeEditor)),
    DesignerSerializationVisibility(DesignerSerializationVisibility.Content)>
    Public Property finance() As Finance
        Get
            Return _finance
        End Get
        Set(ByVal value As Finance)
            _finance = value
        End Set
    End Property

    Private _leisure As New Leisure
    <CategoryAttribute("(Monthly Outgoings)"),
    DisplayName("Leisure"),
    Editor(GetType(TypeEditor5), GetType(UITypeEditor)),
    DesignerSerializationVisibility(DesignerSerializationVisibility.Content)>
    Public Property leisure() As Leisure
        Get
            Return _leisure
        End Get
        Set(ByVal value As Leisure)
            _leisure = value
        End Set
    End Property

    Private _regularBills As New RegularBills
    <CategoryAttribute("(Monthly Outgoings)"),
    DisplayName("Regular Bills"),
    Editor(GetType(TypeEditor7), GetType(UITypeEditor)),
    DesignerSerializationVisibility(DesignerSerializationVisibility.Content)>
    Public Property regularBills() As RegularBills
        Get
            Return _regularBills
        End Get
        Set(ByVal value As RegularBills)
            _regularBills = value
        End Set
    End Property

    Private _insurance As New Insurance
    <CategoryAttribute("(Monthly Outgoings)"),
    DisplayName("Insurance"),
    Editor(GetType(TypeEditor4), GetType(UITypeEditor)),
    DesignerSerializationVisibility(DesignerSerializationVisibility.Content)>
    Public Property insurance() As Insurance
        Get
            Return _insurance
        End Get
        Set(ByVal value As Insurance)
            _insurance = value
        End Set
    End Property

    Private _children As New Children
    <CategoryAttribute("(Monthly Outgoings)"),
    DisplayName("Children"),
    Editor(GetType(TypeEditor1), GetType(UITypeEditor)),
    DesignerSerializationVisibility(DesignerSerializationVisibility.Content)>
    Public Property children() As Children
        Get
            Return _children
        End Get
        Set(ByVal value As Children)
            _children = value
        End Set
    End Property

    Private _otherBills As New OtherBills
    <CategoryAttribute("(Monthly Outgoings)"),
    DisplayName("Other Bills"),
    Editor(GetType(TypeEditor6), GetType(UITypeEditor)),
    DesignerSerializationVisibility(DesignerSerializationVisibility.Content)>
    Public Property otherBills() As OtherBills
        Get
            Return _otherBills
        End Get
        Set(ByVal value As OtherBills)
            _otherBills = value
        End Set
    End Property

    Public Function getValues() As Decimal()
        Dim decValue As Decimal
        Decimal.TryParse(Me.totalIncome, NumberStyles.Currency, CultureInfo.CurrentCulture, decValue)
        Dim values() As Decimal = {decValue, Me.houseHold.totalHousehold, Me.transport.totalTransport,
            Me.finance.totalFinance, Me.leisure.totalLeisure, Me.regularBills.totalRegularBills,
            Me.insurance.totalInsurance, Me.children.totalChildren, Me.otherBills.totalOtherBills, 0}
        values(9) = values(0) - values.Skip(1).Take(8).Sum
        Return values
    End Function


End Class

The wrapper Classes

This is an example of the readonly wrapper classes used in this application.

Imports System.ComponentModel

<TypeConverter(GetType(ExpandableObjectConverter))> <System.Serializable()>
Public Class RegularBillsWrapper
    Private _instance As RegularBills

    Public Sub New(ByVal c As RegularBills)
        _instance = c
    End Sub

    <DisplayName("Council Tax"),
    RefreshProperties(RefreshProperties.All)>
    Public ReadOnly Property councilTax() As Decimal
        Get
            Return _instance.councilTax
        End Get
    End Property

    <DisplayName("Gas/Electricity/Water"),
    RefreshProperties(RefreshProperties.All)>
    Public ReadOnly Property amenities() As Decimal
        Get
            Return _instance.amenities
        End Get
    End Property

    <DisplayName("Phone/Television"),
    RefreshProperties(RefreshProperties.All)>
    Public ReadOnly Property communications() As Decimal
        Get
            Return _instance.communications
        End Get
    End Property

    <ReadOnlyAttribute(True),
    Browsable(False),
    DisplayName("Total Regular Bills Outgoings")>
    Public ReadOnly Property totalRegularBills() As Decimal
        Get
            Return councilTax + amenities + communications
        End Get
    End Property

    Public Overrides Function ToString() As String
        Return totalRegularBills.ToString("c2")
    End Function

End Class
